Description

The FNIRS Pioneer kit provides all the necessary equipment to conduct signal acquisitions using the biosignalsplux FNIRS sensor (functional Near-Infrared Spectroscopy) and comes with a 4-channel biosignalsplux hub, the FNIRS sensor, a hub charger, and a PLUX-proven Bluetooth dongle.

The FNIRS is an easy-to-use, non-invasive, and portable sensor which uses two emitting LEDs, one in the red region and the other in the infrared region of the spectrum, to measure the red and infrared light reflectance in the cortical tissue.

The emitted light of each one of these LEDs is absorbed by a photodiode, which resulting current can be used to compute an estimation of the blood oxygen saturation level in the monitored brain region or tissue. This method, combined with the sensor’s form-factor, provides a non-intrusive method for brain activity monitoring, which is applicable in a variety of research fields, including biomedical, psychophysiology, and other functional neuroimaging applications (e.g. Brain-Computer Interface development). Additionally, the acquired sensor data can be used to extract heart rate information, which can be used for further analysis of cardiac activity (e.g. Heart Rate Variability).

Developed for Developers & Researchers
Other than most biosignalsplux sensors, which provide a pre-conditioned analog output, this sensor provides a digital output signal which can be received via SPI. Although it has been designed for signal acquisitions conducted on the forehead, the light intensity of each electrode can be set individually using the biosignalsplux API. This allows one to adjust the light intensities when using this sensor on other regions or research applications with different requirements.

Developed in Cooperation with Charles River Analytics
For the development of this sensor, PLUX has joined Charles River Analytics (CRA) to provide a new affordable miniaturized FNIRS sensor which allows acquisitions of high-quality brain activity data even in settings with heavy physical movement involved – all while keeping the cost of the sensor at a fraction of currently available FNIRS systems.

Together with research partners at CRA and the McLean Hospital (Harvard Medical school), the development and out-of-the-lab results of this sensors have been thoroughly investigated. Those results are presented in the research team’s paper “A System to Monitor, Extract, and Decode Indicators of Cognitive Workload (MEDIC) in Realistic, High-motion Environments”.

Kit Content

Included Hardware

1x wireless 4-channel hub
1x FNIRS sensor
1x Bluetooth dongle
1x medical-grade charger

Included Software (Digital Content)

OpenSignals for real-time data acquisition & visualization
Open Signals Mobile app (Android)
Cross-platform APIs for software development in Python, C++, Visual C#, Java, Android & MATLAB

Specifications

4 Channel Hub:

Analog ports: 4 generic inputs

Auxiliary ports: 1 ground

Resolution: Up to 16-bit (per channel)

Sampling rate: Up to 3kHz (per channel)

Communication: Bluetooth Class II

Range: Up to ~10m (extendable)

Internal memory: Not included (16GB optionally available)

Battery life: ~10h streaming; ~24h logging

Size: 85x54x10mm

Weight: 45g (without sensors)

Color: White

FNIRS Sensor:

Dual LED Design: 1 red & 1 infrared (IR) LED

Red LED Wavelength: 660nm

IR LED Wavelength: 860nm

Detector Sensitivity: 400nm-1100nm (max@860nm)

Resolution: 16-bit

Sampling Rate: 500Hz

Communication: SPI
Cable Length: 100cm±0.5cm (customizable)

Downloads

biosignalsplux User Manual
4-Channel Hub Datasheet
fNIRS Sensor Datasheet
OpenSignals & Add-Ons User Manual
OpenSignals (r)evolution (Windows, macOS, Linux)

Image Disclaimer

Due to photographic lighting, design techniques and different devices used to view the displayed product, the colour you see may vary slightly from the actual colour of the product. Similarly, other slight variations, like content, may occur between the product displayed (image) and the actual product. Please read Product Description and Kit Content for more accurate information.

biosignalsplux

Electrocardiography (ECG) Sensor

fNIRS Pioneer Kit

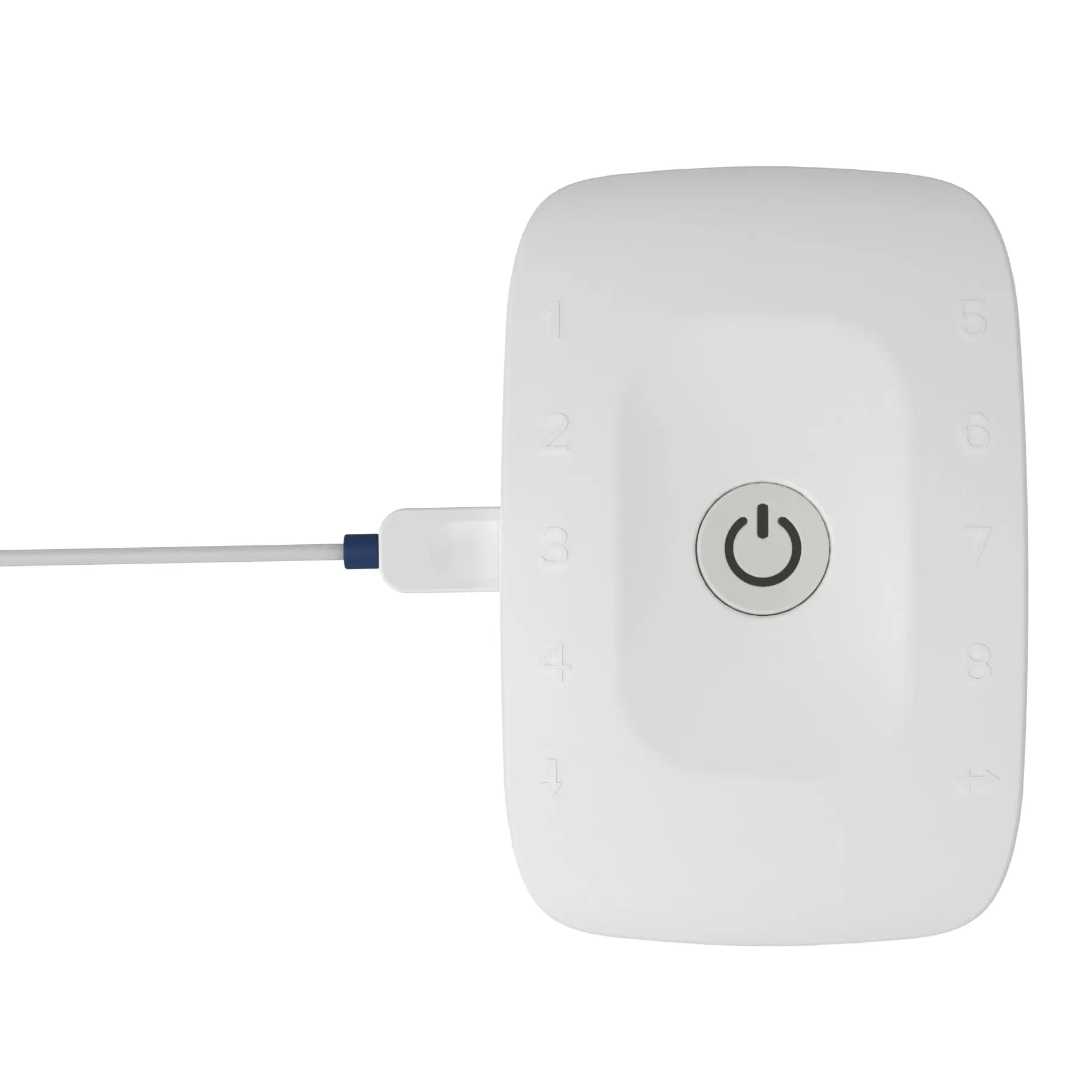

Light (LUX) Sensor

Handheld Switch

Multi Sync Splitter

Digital Sync Cable

Foot Switch

Adjustable Silicone Cap for EEG

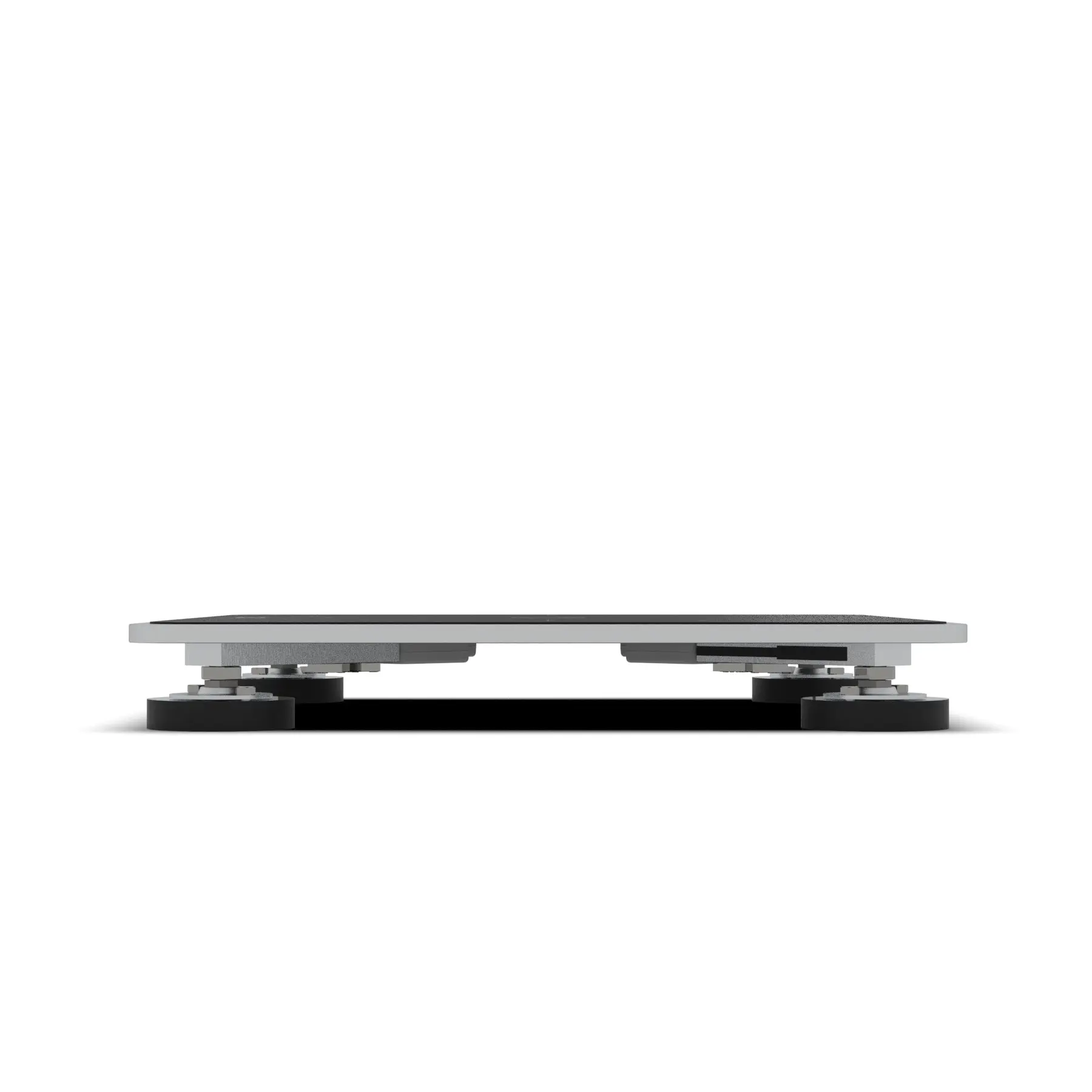

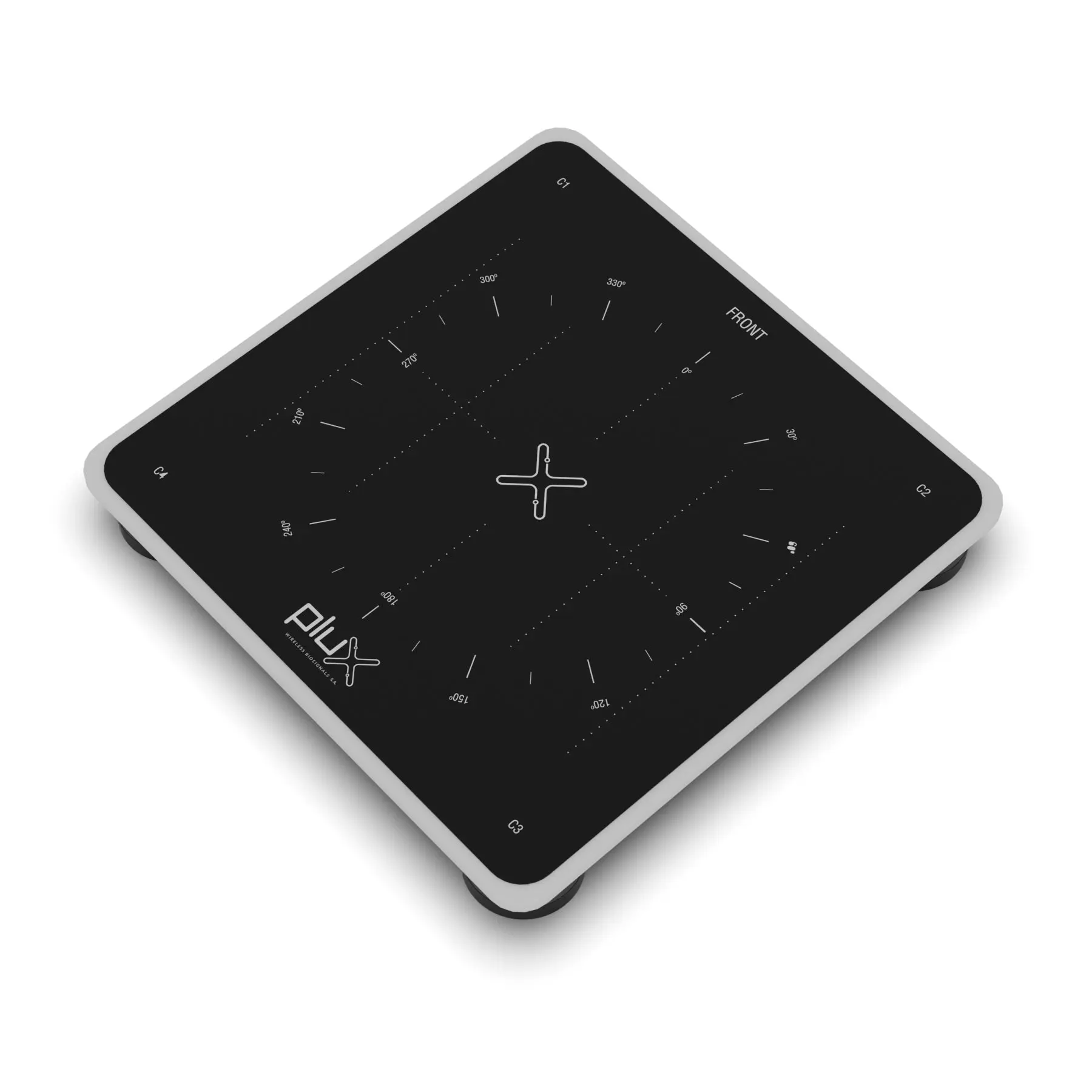

Force Platform

Hub Charger

Functional Near-Infrared Spectroscopy (FNIRS) Sensor

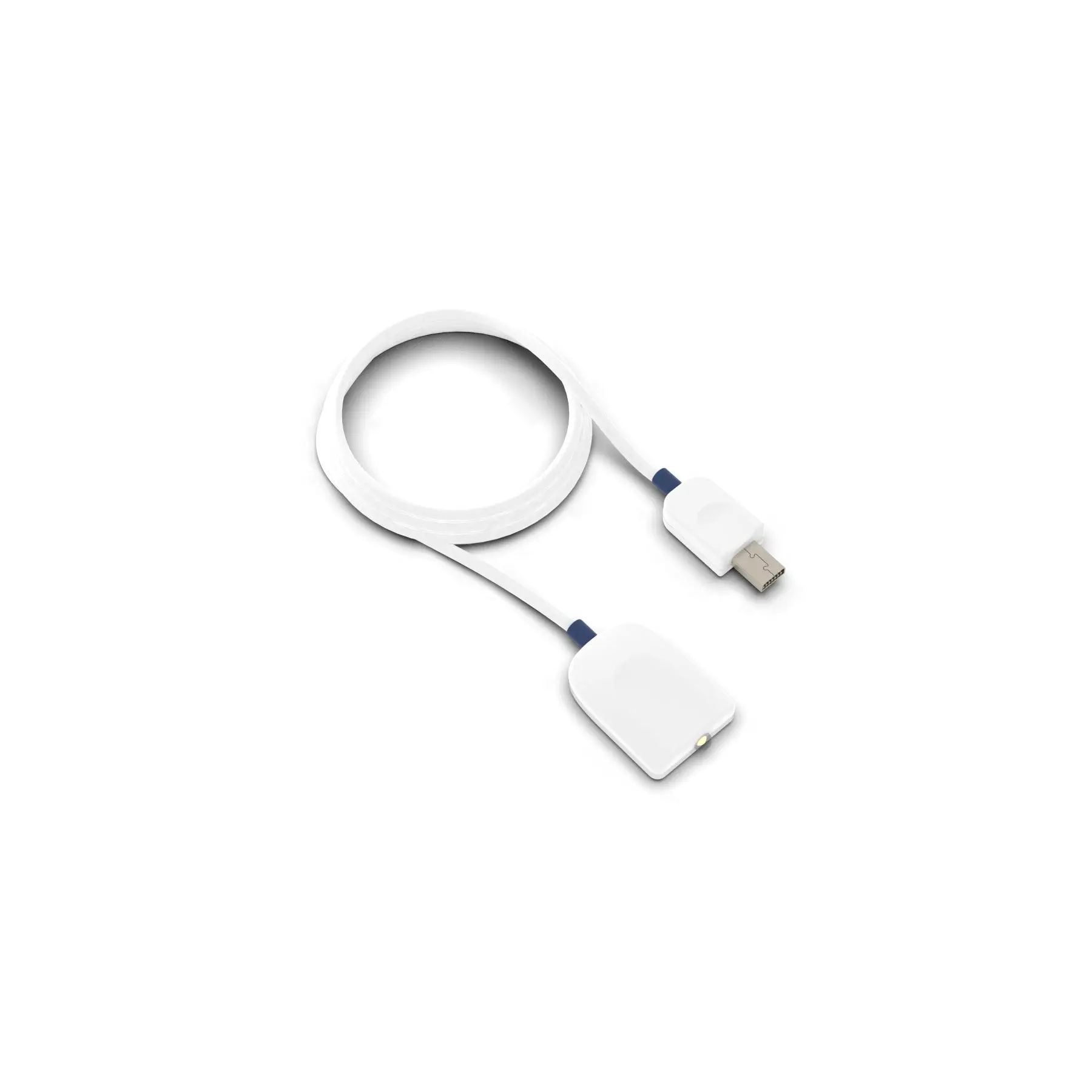

Light-Emitting Diode (LED)
